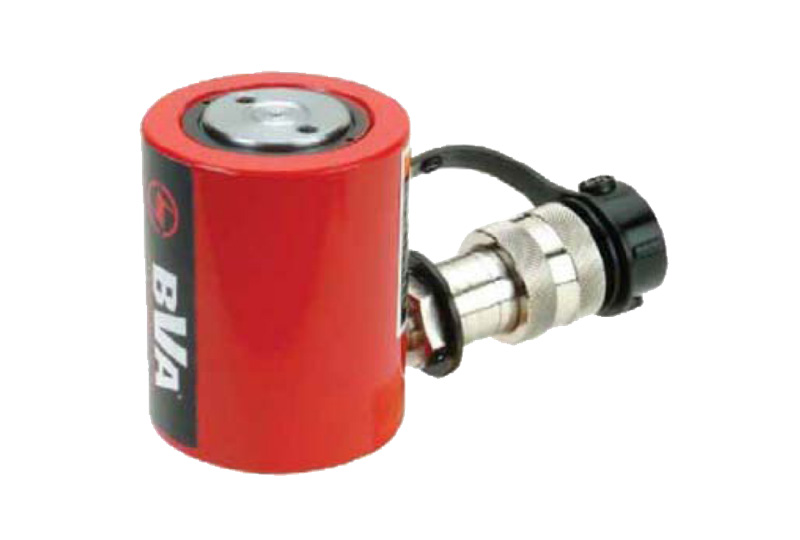

Low Profile

  • Compact design for use in confined spaces.
  • Plunger wiper reduces contamination and extends the cylinder-life.
  • Special designed return spring ensures a quick retraction and extends the life of the spring.
  • Industrial hard chrome plated ram helps prevent scratching and corrosion.
  • Plunger end is grooved to reduce load slipping.
  • Includes high flow ball coupler and dust cap.
  • HL1001, HL2002 and HL3002 coupler is tilted upward for added clearance.
  • Maximum working pressure: 700 bar (10,000 psi).


Model
Number		 Stroke А  В  Oil
Capacity		 Weight
Min. Height Max. Height
(mm)  (mm)  (mm)  (cc)  (Kg)
Cylinder Capacity: 10 Ton= 106 kN
HL1001   38.0   88 126 58 2,6
Cylinder Capacity: 20 Ton = 198 kN
HL2002   44.5   99 144 126 5
Cylinder Capacity: 30 Ton= 293 kN
HL3002   62.0   117 179 259 6,8
Cylinder Capacity: 45 Ton= 445 kN
HL5002   60.0   122 182 381 9,9
Cylinder Capacity: 90 Ton = 887 kN
HL10002   57.0   141 198 722 20,6

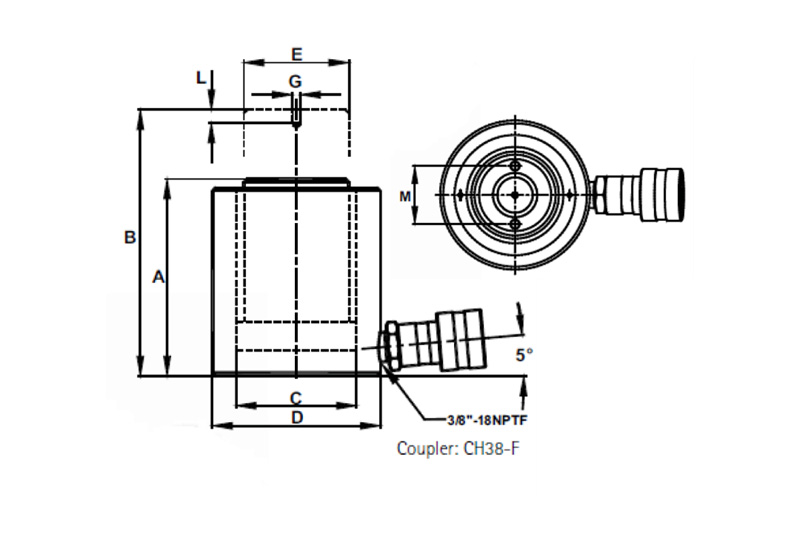

Model
Number 		 Capacity
 (kN) 		 Cylinder
Effective
Area 		 С  D  Е  G  L  М
Bore
Diametr		 Outside
Diametr		 Plunger
Diametr		 Thread Thread
Depth		 Pitch
Diametr
(cm2)  (mm)  (mm)  (mm)  (mm)  (mm)
HL1001   106 15,2 44 70 38 М4   8 26
HL2002   198 28,3 60 92 51 М5   8 40
HL3002   293 41.8   73 102 63 М5   8 40
HL5002   445 63.6   90 124 70 М5   8 40
HL10002   887 126.7   127 165 90 М8   10 56
