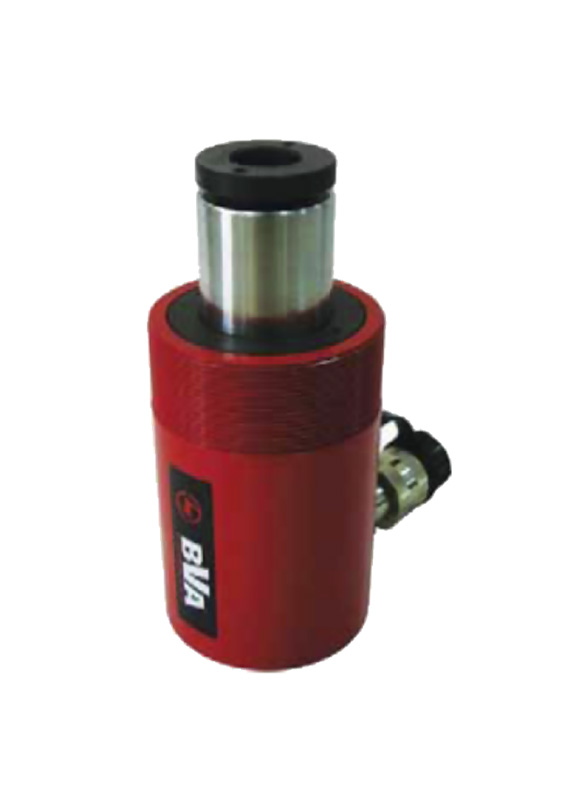

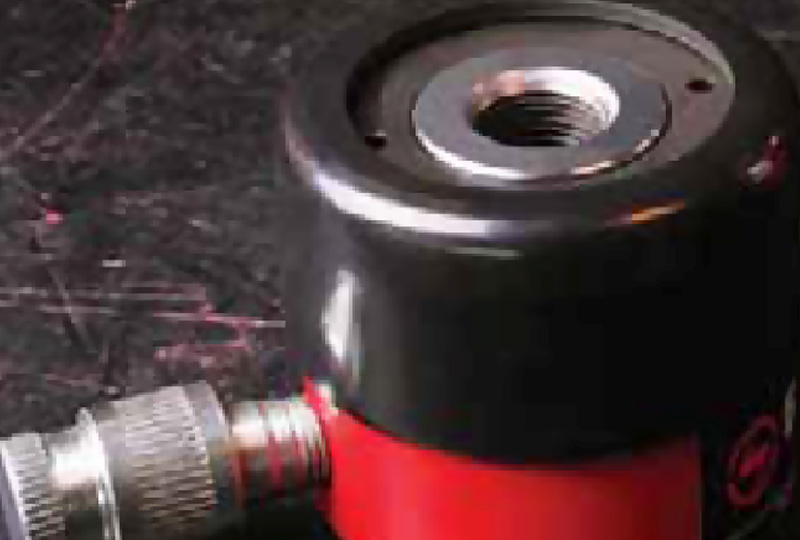

  • High quality threaded single acting cylinders.
  • Removable threaded plunger adapter allows for the use of a variety of threaded attachments.
  • Used to attach accessories to rod end and base.
  • Maximum working pressure: 700 bar (10,000 psi).



Model
Number		 Stroke А  В  Integral Plunger
Thread Length		 Oil
Capacity		 Weight
Min. Height Max. Height
(mm)  (mm)  (mm)  (mm)  (cc) (Kg)
Cylinder Capacity: 12 Ton = 132 kN
НС1201Т   7,8 60 67 16 15 1,5
НС1202ХТ  41 120 161 -   77 2,8
НС1202   41 120 161 27 77 2,8
НС1203ХТ  76 184 260 -   143 3,9
Cylinder Capacity: 20 Ton = 221 kN
НС2002Т   51 162 213 21 161 7,2
НС2006Т   154 306 460 21 487 13,4
Cylinder Capacity: 30 Ton = 286 kN
НС3002Т   64 179 243 24 260 10,4
НС3006Т   155 330 486 24 633 19,5
Cylinder Capacity: 60 Ton= 589 kN (Incl. 2 Carry Handles)
НС6003Т   76 248 324 21 641 29,8
НС6006Т   152 324 476 21 1282 36.8
Cylinder Capacity: 100 Ton= 1000 kN (Incl. 2 Carry Handles)
HC10003T  76 254 330 27 1087 51.4

Model Capaci
kN		 Cylinder
Effecitve

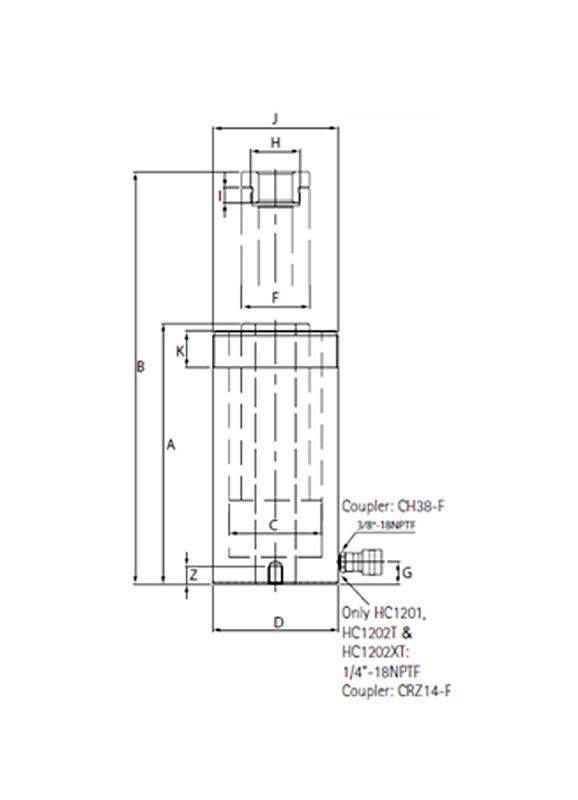

Area		 C D  Е  F  G  Н  J  К  X  Y  Z
Cylinder Bore
Diameter		 Outside
Diametr		 Plunger Collar Thread Base Mounting Hole
Inside
Diametr		 Outside
Diametr		 Base to Inlet
Port
Internal
Thread
 Diametr Lenght Bolt
Circle		 Thread Thread
Depth
(cm2)  (mm)  (mm)  (mm)  (mm)  (mm)  (mm) (mm)  (mm)
Cylinder Capacity: 12 Ton= 132 кН (Coupler: CRZ14-F)
12 Ton 132 18,8 55 70 19 35 15 3/4”-16UN   2 3/4”-16 30 50.8   5/16”-18UNC 9
Cylinder Capacity: 12 Ton= 132 kN (Coupler: CH38-F)
12 Ton 132 18,8 55 70 19 35 19 3/4”-16UN   2 3/4”-16 30 50.8   5/16”-18UNC 9
Cylinder Capacity: 20 Ton= 221 kN
20 Ton 221 31.6   75 99 27 54 19 1 9/16”-16UN 3 7/8”-12 38 82.5   3/8”-16UNC   9
Cylinder capacity: 30 Ton = 286 kN
30 Ton 286 40.8   85 114 33 63 23 113/16”-16UN 4 1/2”-12 42 92 3/8”-16UNC   14
Cylinder Capacity: 60 Ton= 589 kN(Incl. 2 Carry Handles)
60 Ton 589 84.2   125 158 54 93 27 2 3/4”-16UN   6 1/4”-12 48 130 1/2”-13UNC   14
Cylinder Capacity: 100 Ton= 1000 kN(Incl. 2 Carry Handles)
100 Ton 1000 142.8   165 213 79 125 27 4”-16UN   8 3/8”-12 60 178 5/8”-11UNC   19
