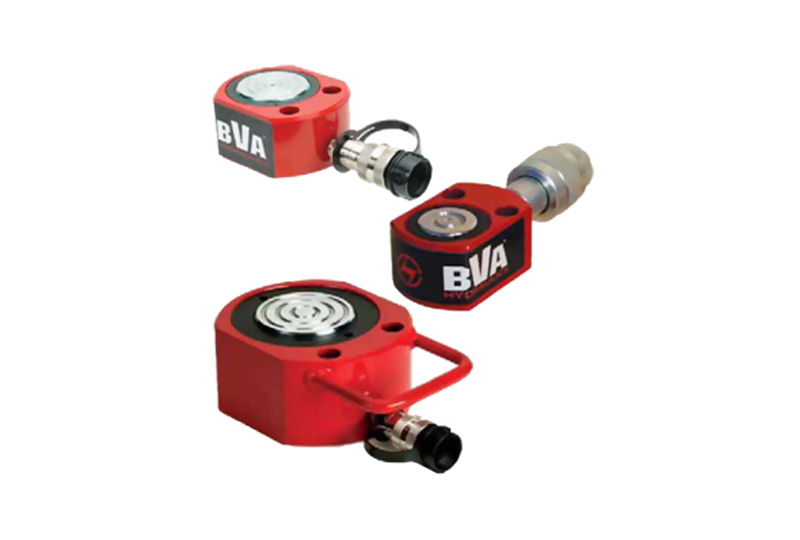

Flat Body

Body made of high quality solid steel. Maximum working pressure: 700 bar (10,000 psi). 75, 100 and 150 Ton Flat Body Cylinders are provided with a Carry Handle.

Model Number	Stroke	А	В	Расход  масла	Weight
		Min. Height	Max. Height
	(mm)	(mm)	(mm)	(cc)	(Kg)
Cylinder Capacity: 5 Ton = 49 kN
HF0500	16	41	57	11	0,9
Cylinder Capacity: 5 Ton= 49 kN 3/8” Coupler Regular Flow
HF0503	6	32	38	4	0,6
Cylinder Capacity: 10 Ton = 104 kN
HF1005	11	43	54	16	1,5
Cylinder Capacity: 20 Ton= 194 kN
HF2005	11	51	62	31	2,7
Cylinder Capacity: 30 Ton= 287 kN
HF3005	13	59	71	54	4,4
Cylinder Capacity: 50 Ton= 445 kN
HF5006	16	67	83	101	6,7
Cylinder Capacity: 75 Ton= 727 kN (Incl. Handle)
HF7506	16	79	95	166	11,5
Cylinder Capacity: 100 Ton= 887 kN  (Incl. Handle)
HF10006	16	85	101	202	14,3
Cylinder Capacity: 150 Ton = 1385 kN  (Incl. Handle)
HF15006	16	100	116	316	24,2

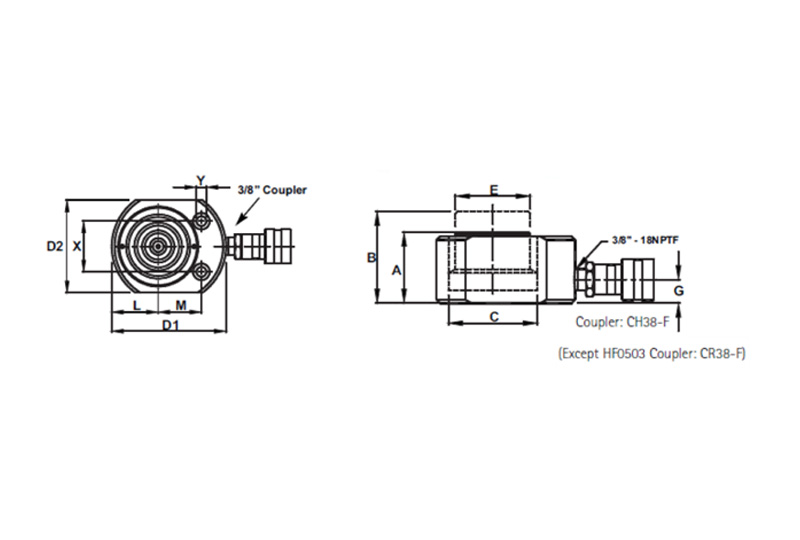

Model Number	Capacity (kN)	Cylinder Effective Area	С	D1×D2	E	G	L	М	X	Y
			Cylinder Bore Diameter	Outside Diameter	Plunger Diameter	Base to Inlet Port	Plunger to Base	Plunger to Mtg. Hole	Cylinder Mounting Hole Dimensions
									Hole Pitch	Hole Diametr	Counter Bore Diametr	Counter Bore Depth
		(cm2)	(mm)	(mm)	(mm)	(mm)	(mm)	(mm)	(mm)	(mm)	(mm)	(mm)
HF0500	49	7,1	30	60×40	25	19	20	22	28	5	10	6
HF0503	49	7,1	30	61×41	25	18	20	22	28	5	10	6
HF1005	104	15,2	44	84×56	38	20	28	34	37	7	10	10
HF2005	194	28,3	60	102×76	51	19	39	40	49	10	15	10
HF3005	287	41.9	73	117×97	64	20	48	45	52	10	16	11
HF5006	445	63.6	90	140×114	70	20	57	54	67	11	19	13
HF7506	727	103.9	115	165×140	90	20	70	67	76	13	21	14
HF10006	887	126.7	127	177×152	90	20	76	75	76	13	21	14
HF15006	1385	197.9	158	215×190	118	24	95	83	117	13	21	14
