  • Internal plunger threads.
  • Plunger wiper reduces contamination and extends the cylinder-life.
  • High strength steel construction from gun drilled solid bar.
  • High flow 3/8”-18NPTF couplers.
  • Collar thread protectors.
  • One piece high grade alloy bearing for side load protection and long life.
  • Polyurethane cup seal provides for optimum performance.
  • Industrial hard chrome plated ram helps prevent rust and corrosion.


Model
Number		 Stroke А   В   Oil Capacity Weight
Min.
Height 		 Max.
Height		 Push Pull
(mm)   (mm)   (mm)   (cc)   (cc)   (Kg)
Cylinder Capacity: Push: 10 Ton & Pull3.4 Ton.
HD1010   255 410 665 367 122 12,1
HD1012   304 458 762 437 145 13,6
Cylinder Capacity: Push: 30 Ton & Pull 15 Ton.
HD3008   207 389 596 867 426 19,5
HD3014   368 550 918 1541 758 27,5
Cylinder Capacity: Push: 50 Ton & Pull 15 Ton
HD5506   157 331 488 1113 323 29,4
HD5513   335 509 844 2375 690 44.6
HD5520   511 733 1244 3623 1052 63.7
Cylinder Capacity: Push: 75 Ton & Pull 24 Ton (Incl. 2 Carry Hadles)
HD7506   155 348 503 1608 511 39.9
HD7513   333 526 859 3456 1098 59.6
Cylinder Capacity: Push: 95 Ton & Pull 44 Ton (Incl. 2 Carry Handles)
HD10006   167 357 524 2216 1032 60.1
HD10013   333 524 857 4418 2057 85.2
HD10018   461 687 1148 6117 2849 110.0

Model
Number		 Capacity Cylinder
Effective

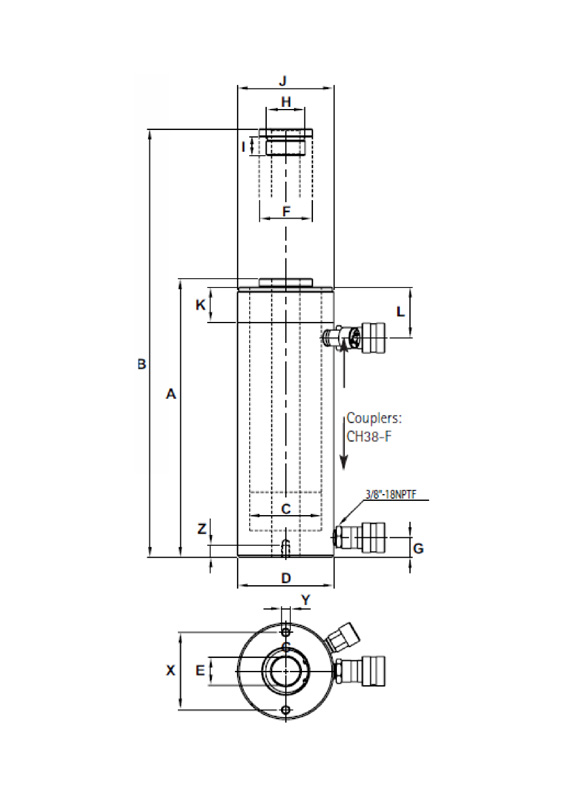

Area		 С  D  Е  F  G  Н
Push Pull Plunger
Bore
Diametr		 Outside
Diametr		 Inside Diametr Outside diametr Base to Inlet Port  Top To Inlet Port
Push.  Pull
(kN)  (kN)  (cc)  (cc)  (mm)  (mm)  (mm)  (mm)
10 Ton 101 34 14 4 43 73 35 35 36 53
30 Ton 293 144 41 20 73 101 54 50 42 74
50 Ton 496 144 70 20 95 127 79 70 29 73
75 Ton 726 231 103 33 115 146 95 70 30 71
100 Ton 928 433 132 61 130 177 95 75 31 75

J  К  L  М  X  Y  Z
Collar Thread Base Mounting Hole
Internal THread diametr Internal Thread Lgth. Internal
Thread
Diametr		 Internal Thread Lgth. Pitch Thread Diametr (mm)  Thread depth
(mm)  (mm)  (mm)
1”-8UNC   25 4 / ”-U   26 -   -   -
1 1/2”-
 16UN  		 25 3 5/16”-
 12  		 49 -   -   -
1”-
 12UNF  		 25 5”-12   44 -   -   -
1”-
 12UNF  		 38 5 3/4”-12   38 -   -   -
