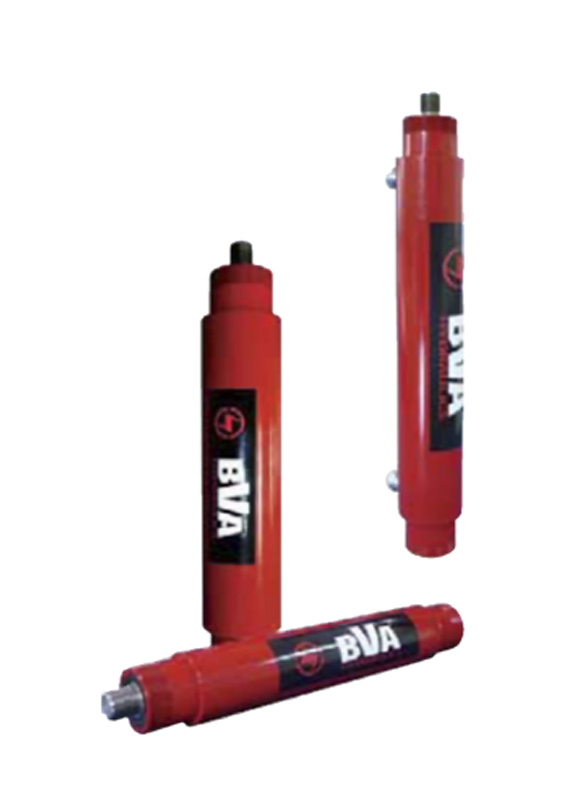

Double Acting High Tonnage

  • Ideal for pushing and pulling applications.
  • The best choice for production applications.
  • High strength steel construction.
  • One piece high grade alloy bearing for side load protection and longer life.
  • Polyurethane cup seal helps provide for optimum performance.
  • External plunger threads.
  • Internal base threads.
  • Used for pulling and pushing applications.
  • Maximum working pressure: 700 bar (10,000 psi).


Model
Number		 Stroke А  В  Oil Capacity Weight
Min.
Height		 Max.
Height
Push Pull
(mm) (mm)  (mm)  (cc)  (cc)  (Kg)
Cylinder Capacity: Push: 8 Ton & Pull 4.5 Ton
HPD0906 155 350 505 175 99   6,6
HPD0910 257 452 709 291 165   8,4
Cylinder Capacity: Push: 15 Ton & Pull 7.1 Ton
HPD1606 159 389 548 322 160 10
HPD1610 260 490 750 527 262 12,8

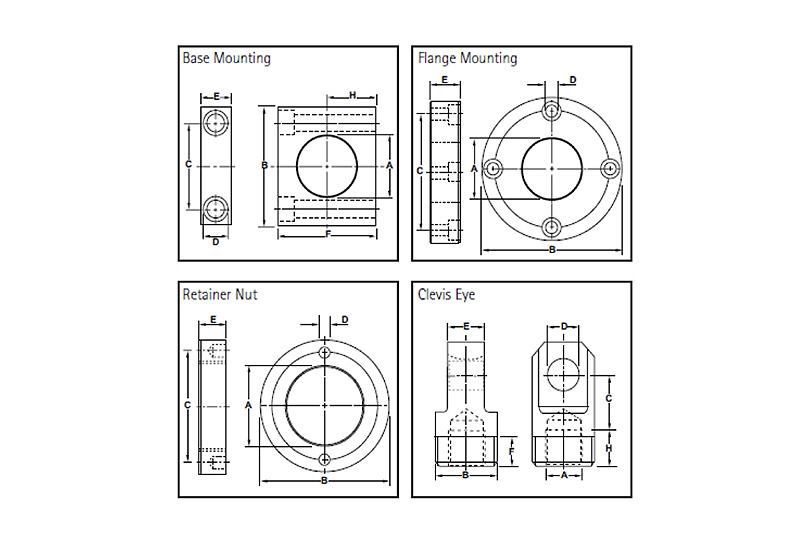

Model Number Dimensions
A B C D E F H
(mm) (mm) (mm) (mm) (mm) (mm) (mm)
Cylinder Capacity: 9 Ton
CEBN09 50,8 101,6 73,15 13,5 25,4 82,5 44,5
CEFN09   50.80   121.00   98.55   10 25,4 -   -
CED09   3/4"-16N   1-11/16"-18N   33.30   19,05 25,4 25,4 23,9
CEN09   2"-12N   76.00   63.50   7 12,7 -   -
Cylinder Capacity: 16 Ton
CEBN16   66.80   130.00   95.50   19,5 35.00   101.60   52.30
CEFN16   66.80   143.00   115.80   13,5 35.00   -   -
CED16   1-1/8"-12N   2-3/16"-16N   47.80   25,4 31.75   25,4 30,2
CEN16   2-5/8"-16N   92.00   79.20   7 19 -   -

Model
Number		 Max.
Cylinder
Capacity		 Cylinder
Effective
Area		 С  D  E F G H J K L  М  N  Р  Q
Bore
Diameter		 Outside
Diameter		 Plunger Base To Inlet Port Top To Inlet Poert Collar
Diameter Protrusion Thread Thread Lgth. Length Thread Thread
Length		 Int. Base Thread Int. Base Thread
Lenghtя
Push  Pull Push Pull
(kN)  (kN)  (cm2) (cm2)  (mm)  (mm)  (mm) (mm) (mm) (mm)  (mm) (mm)  (mm)  (mm)
8 Ton  79   45   11,3 6,4 38   64   25 25 %"-16N   19 56   56   38   2"-12N   15 111/16"-
 18N  		 35
15 Ton 142   71   20,3 10,8 50   76   36   28 1 1/8"-
 12N  		 25 73   73   54   2 5/8"-
 16N  		 25 2 3/16"-
 16N  		 41
