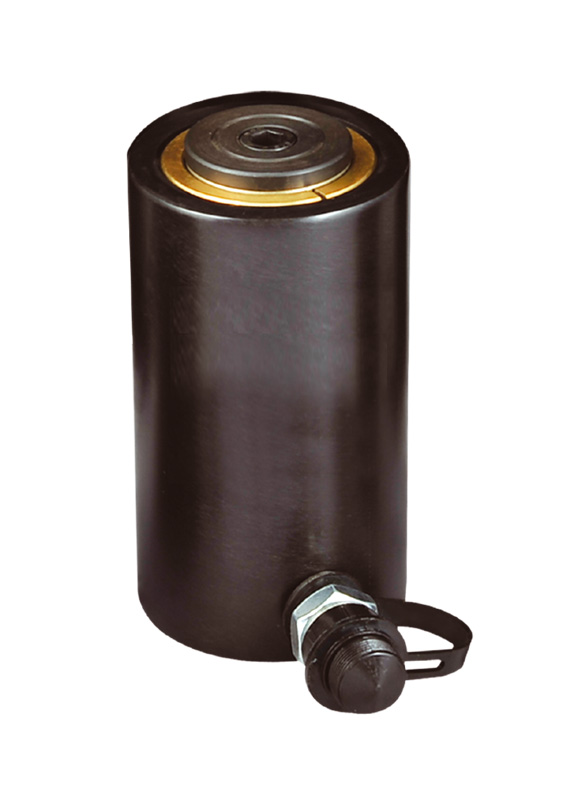

Hydraulic with Cribbing Blocks

Single acting, spring return. Aluminium cylinders are more stable than timber or other awkward, makeshift methods. Ideal for lifting applications such as structure moving. Reduces cribbing time dramatically. In effect, increases stroke of the cylinder; stacking pads act as cylinder extensions:

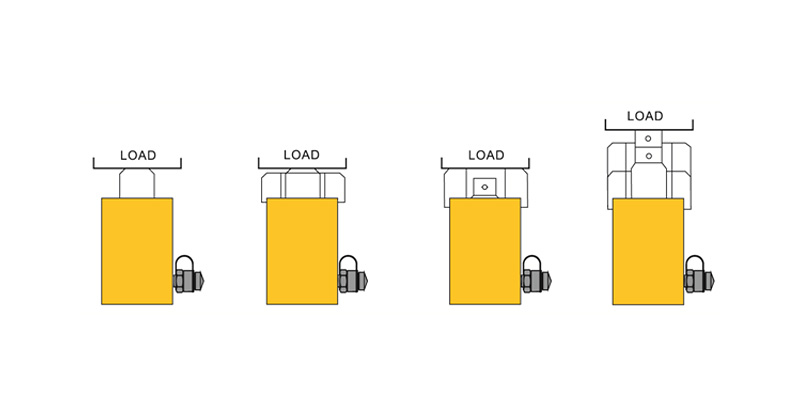

  1. Extend cylinder and insert lower supporting ring.
  2. Retract cylinder, insert a stacking pad.
  3. Extend cylinder again; pad increases cylinder stroke.
  4. Repeat process until all rings and pads are used.

Cylinder operates from hand pumps and pump stations.
Possibility to use in any spatial position.

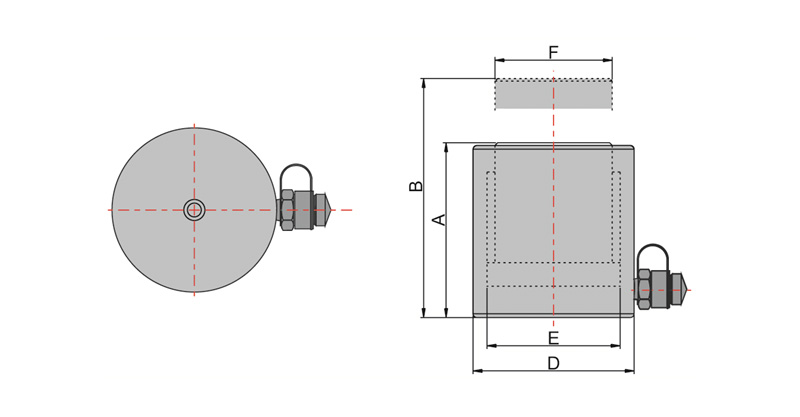

Model Capacity
 (T)		 Storke (mm) Oil Capacity
(mm)		 Stacking Pad
 D*H (mm)		 Closed Height А (mm) Extended Height
 В (mm)		 Outside Diameter
 D (mm		 Inside Diametr E (mm) Piston Diametr F
 (mm)		 Weight
 (Kg)
DGA 50 P 50 S 50 50 391 50×45 182 232 140 95 80 8,6
DGA 50 P 100S 100 770 232 332 10,5
DGA 100 P 50 S 100 50 783 110×45 208 258 180 135 110 17
DGA 100 P 100 S 100 1534 258 358 20,5
DGA 150 P 50 S 510 50 1136 135×45 233 283 230 165 135 30,9
DGA 150 P 100 S 100 2241 283 383 35.9
DGA 200 P 50 S 200 50 1485 135×60 263 313 270 190 160 47.5
DGA 200 P 100 S 100 2938 313 413 51.6
