Flat Body
|

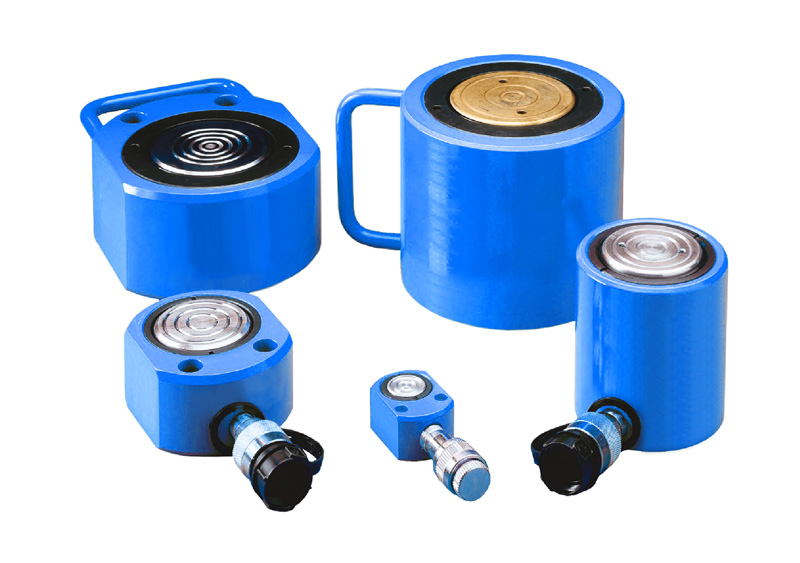

Flat Body Cylinders have an extremely low collapsed height for applications with minimal clearance at the lift point. They are great for areas of low clearance. Cylinders run from hand pumps and pumping stations. Possibility of using in any spatial position. |
 |
 |
| Model |
Tonnage
(T)
|
Stroke
(mm)
|
Oil
Capacity
(cc)
|
Closed
Height A
(mm)
|
Extended
Height B
(mm)
|
Outside
Diameter
DxL
(mm)
|
Inside
Diameter E
(mm)
|
Piston
Diameter F
(mm)
|
Weight
(Kg)
|
| DN 10 P 15 | 10 | 10 | 16 | 48 | 58 | 83x60 | 45 | 38 | 1.6 |
| DN 20 P 15 | 20 | 11 | 34 | 56 | 67 | 99x78 | 60 | 50 | 2.7 |
| DN 30 P 15 | 30 | 13 | 55 | 62 | 75 | 123x98 | 75 | 64 | 4.6 |
| DN 50 P 15 | 50 | 16 | 101 | 72 | 88 | 148x120 | 95 | 70 | 7.8 |
| DN 100 P 15 | 100 | 16 | 200 | 91 | 107 | 180x160 | 135 | 100 | 16.8 |
| DB 150 P 15 | 150 | 16 | 342 | 100 | 116 | 215x190 | 165 | 115 | 27 |
| DN 200 P 15 | 200 | 20 | 567 | 110 | 130 | 255x244 | 190 | 135 | 42 |
