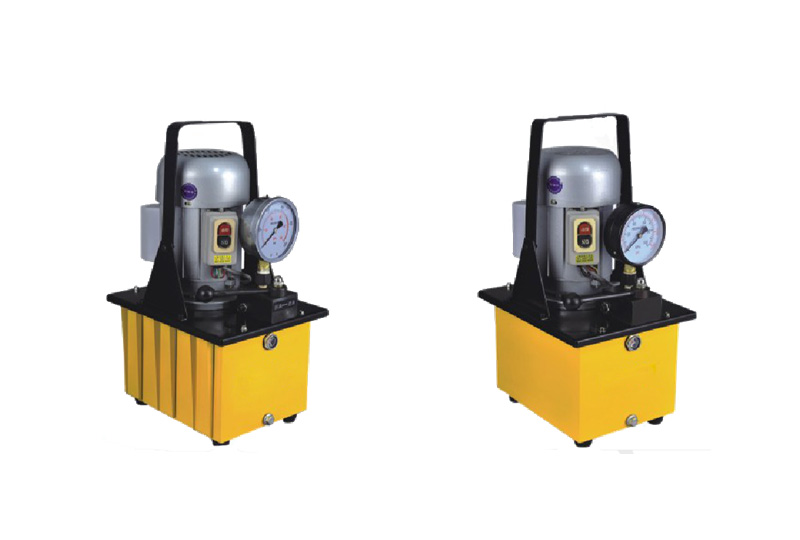

Electric Pumps S/A
|
Pumps are designed to provide fluid for different mechanisms as hydraulic jacks, pullers, presses, tube benders and other hydraulic tools and equipment.
Infinitely variable pressure adjustment between 40~700 bar. NER — electric pump with manual flow control valve. NER — electric pump with manual flow control valve. |
 |
 |
| Model |
Capacity (kW) |
Voltage |
Working Pressure (MPa) | Oil Supply (L/min) |
Oil Capacity (L) |
Volume L×B×H (mm) |
Weight (Kg) |
||
|
Low Pressure Stage |
High Pressure Stage |
Low Pressure Stage |
High Pressure Stage |
||||||
| NER-3-S/A | 0,75 | 220/380 | 2 | 70 | 5 | 0,75 | 8 | 325×250×530 | 24 |
| NEE-3-S/A | 0,75 | 220/380 | 2 | 70 | 5 | 0,75 | 8 | 335×260×470 | 27 |
| NER-4-S/A | 1,5 | 380 | 2 | 70 | 10 | 1,5 | 40 | 480×360×700 | 47 |
| 2,2 | 2 | 54 | |||||||
| 3 | 3 | 56 | |||||||
