Electric Pumps D/A

Pumps are designed to provide fluid for different mechanisms as hydraulic jacks, pullers, presses, tube benders and other hydraulic tools and equipment.

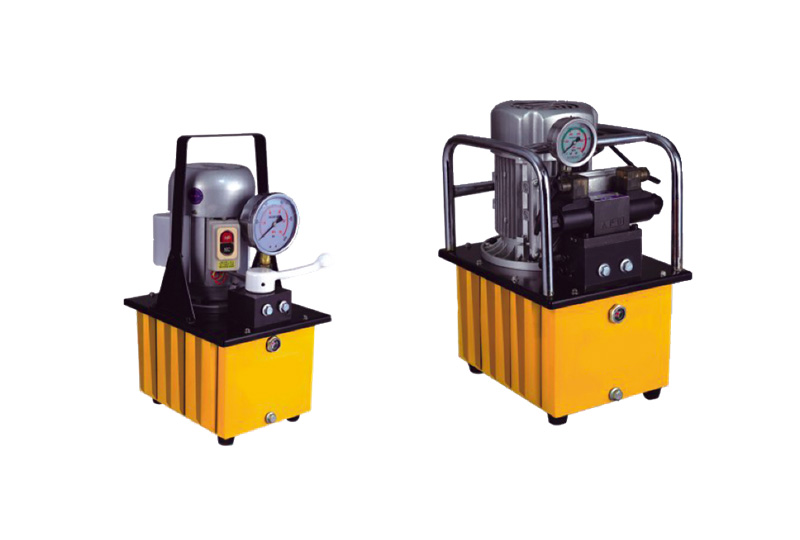

NER — electric pump with manual flow control valve.
NEE — electric pump with solenoid flow control valve solenoid and wired remote control.


Model Capacity
 (кВт) 		 Voltage
 (В) 		 Working Pressure (Mpa)  Oil Supply (L.min)  Oil
Capacity
(L)		 Volume

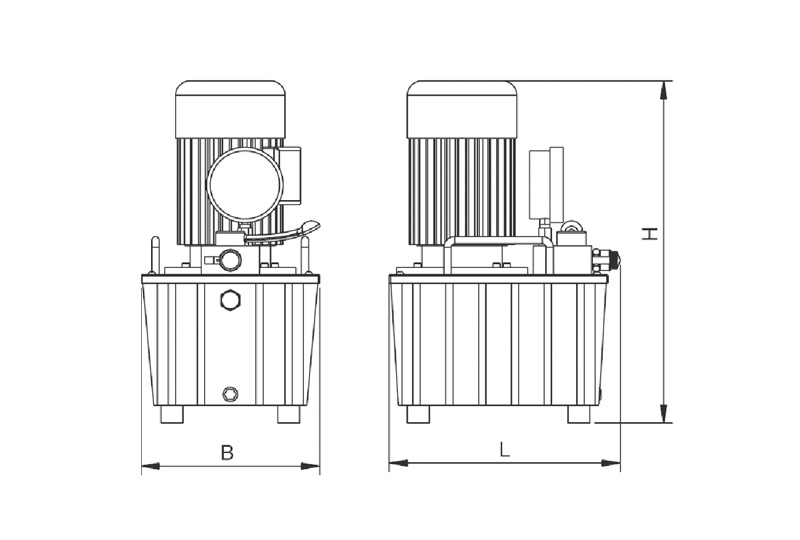

L×B×H (mm) 		 Weight
 (Kg)
Low Pressure
Stage 		 High Pressure
Stage 		 Low Pressure
Stage 		 High
Pressure
Stage
NER-1-D/A 0,75 220/380   –   70 5 0,75 8 325×250×470   23
НEE-1-D/A 0,75 220/380   –   70 5 0,75 8 325×250×530   24
NER-2-D/A 1,5 380 –   70 10 1,5 40 480×360×700   47
2,2 2 54
3 3 56
3 3 56
NEE-2-D/A 1,5 380 2 70 10 1,5 40 480×360×700   47
2,2 2 54
3 3 56
