Hydraulic Wedge Spreader FH

Maximum lifting force: 16 ton.
Stroke: 21 mm.

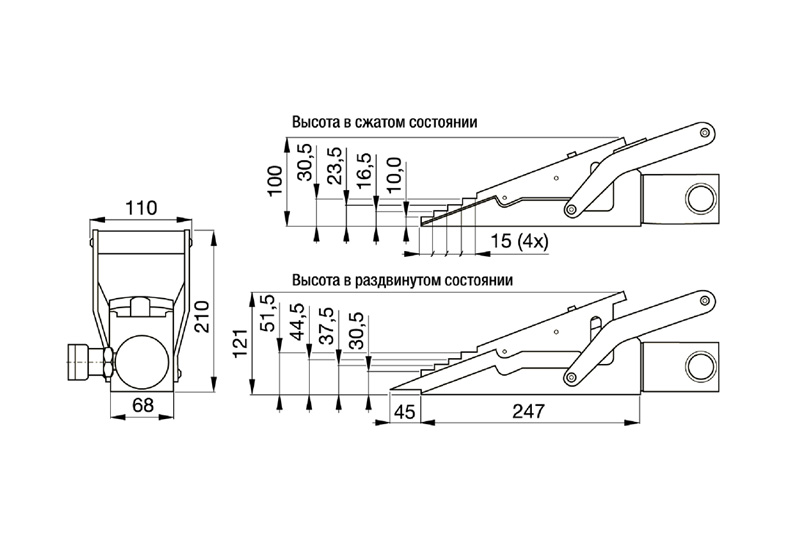

Lift height: 10 mm/ 81,5 mm.
Maximum operating pressure: 700 bar.

Requires very small access gap of only 10 mm.
Lifting force is 16 ton with pressure of 700 bar.
Stepped spreader arm design - each step can spread under full load.
Unique interlocking wedge design - no first step bending and risk of slipping out of joint.
Single-acting cylinder included.

Lifting Force T
Model Number  Tip Clearan
Max. Operating
Oil Capacity
 (cm )
16(157)   21 HVW-10   10 700 78 9
